Description
This modern TFT LCD monitor replaces the 12″ monochrome CRT monitor fitted to the Trumpf Trumatic 120, 235, 240, 250 machines that use the Bosch Trumagraph controller. It is mechanically and electrically compatible with the original CRT so no modifications are needed.

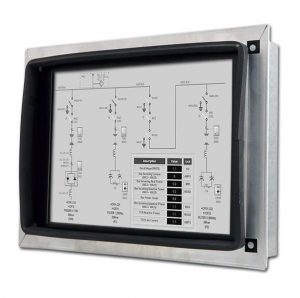

LCD10-0005 – Trumpf 120 235 240 250 monochrome
The screen has a curved front profile to match the profile of the original CRT to ensure a perfect fit with the existing housing.

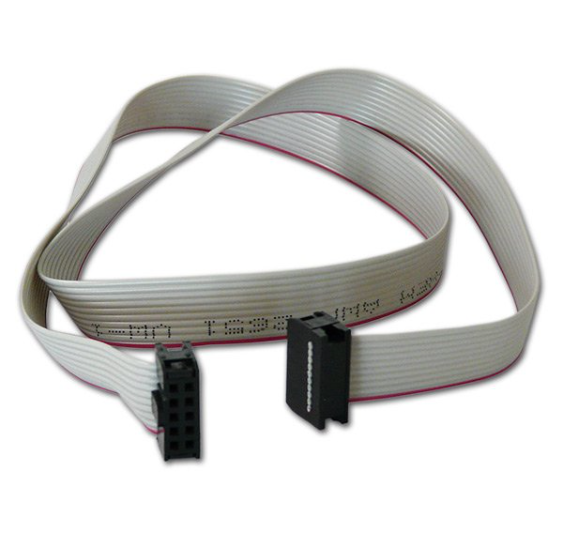

Only one cable connection is needed using the supplied cable. This single 10 pin cable provides both the 12V DC power to the monitor and the video signals.
Original monitor: Trumpf, monochrome 12″ CRT
Replacement monitor: Tsubis LCD10-0005, 10.4″ monochrome TFT LCD
Controller: Bosch Trumagraph
Trumpf Trumatic 120, 235, 240, 500 Replacement Monitor Specifications:
- 10.4″ LCD monitor (gives the same display area as a 12″ CRT)
- Display resolution: 800 x 600
- Brightness: 250 cd/m2
- Contrast ratio: 400:1
- Backlight: approx. 20.000 operating hours
- Mechanics: Chassis version with curve front profile
- Non-reflecting glass
- Connection: 10 pin connector
- Operating voltage: 12V DC
- Delivery incl. mounting angle and connector cable
- Designed for 24/7 continous operation
- CE Certified
- Made in Germany
- 1 Year Warranty
- Our part number: LCD10-0005
Availability
Please contact our sales team by phone or email for delivery options
