Description

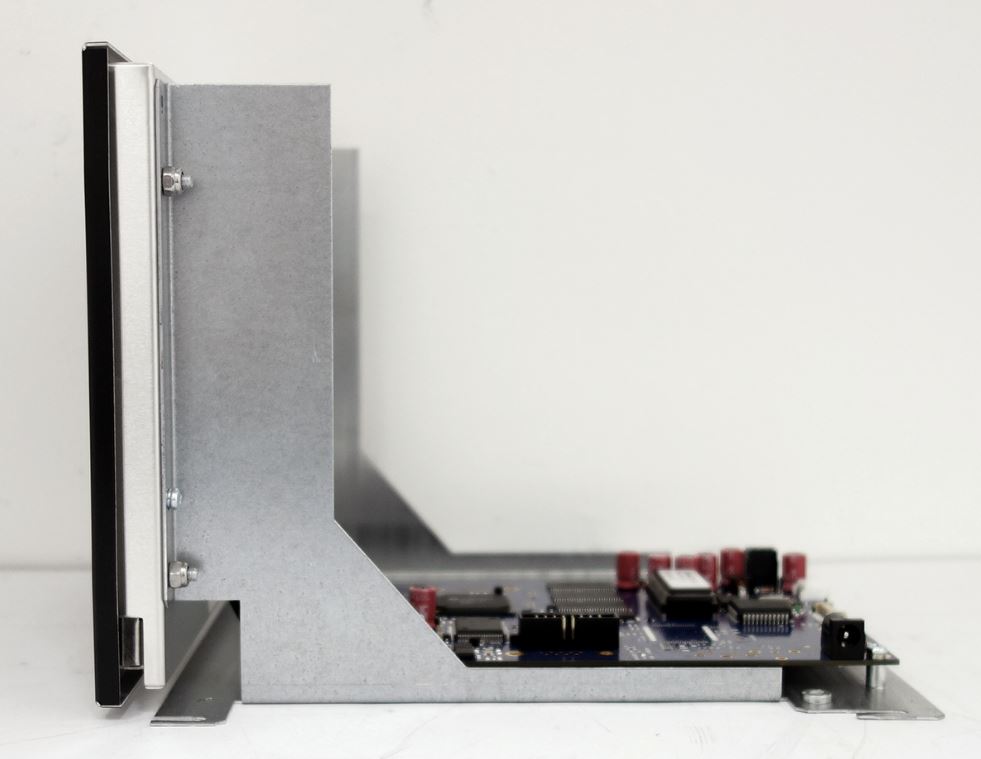

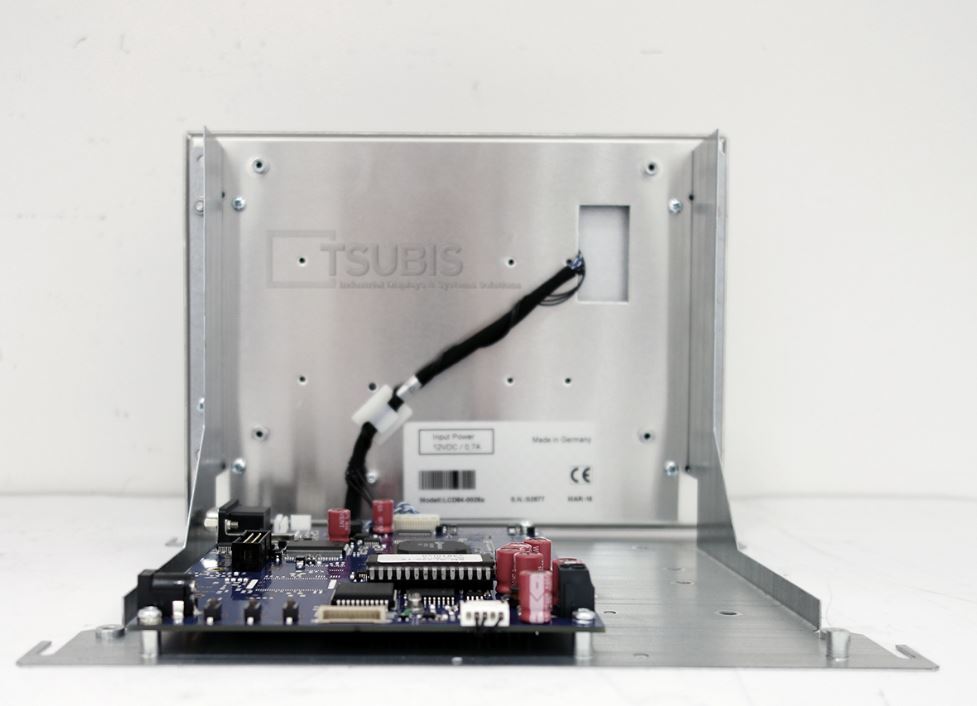

8.4″ TFT monitor which replaces the 9″ and 10″ CRT displays fitted to the Siemens Sinumerik System 3 control.
The monitor is designed to be electronically and mechanically compatible with the original Siemens Sinumerik control and can therefore be swapped out easily with a few simple steps.

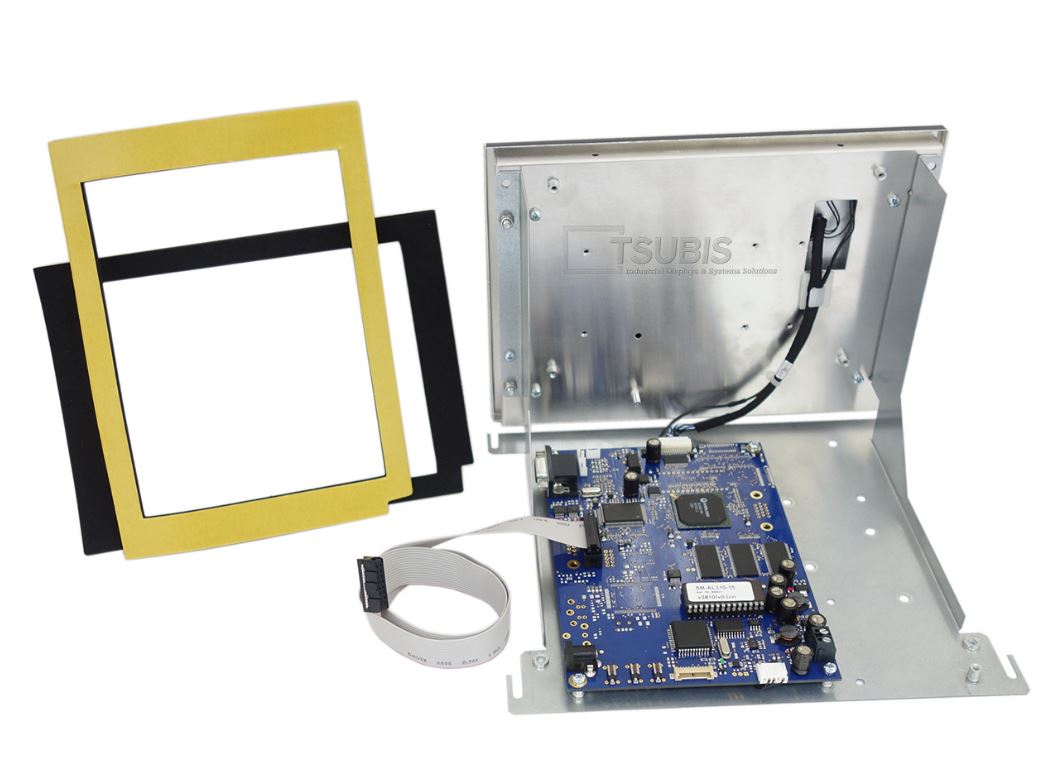

Our LCD monitor is supplied with a new front mounting plate which replaces the old black, plastic bezel mounted in the front panel, and is fitted with non reflecting glass.
Specifications:
- 8.4″ replacement monitor for 9″/10″ CRT displays with following Siemens IDs:
- 6FC3888-5MC
- 6FC3988-7AF01
- 6FC3981-7DP
- 6FC39884-7DS
- 6FC3157-0FA-Z
- Compatible with Siemens Sinumerik S3 control
- Mechanical version: including curved front bezel and non reflecting glass
- Connector to monitor: 16 pin
- Power supply: 12-15V DC (via supplied adapter cable)
- Resolution: 800 x 600
- Brightness: 250 cd/m2
- Contrast ratio: 600:1
- Delivery including adapting cable
- Backlights life-time approx. 20.000 operating hours
- Operation conditions: 0°C ~ 50°C operating temperature
- Designed for 24/7 continuous operation
- 1 Year Warranty
- Our Part Number: LCD84-0028
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen or Inverter
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
