Description
PHILIPS 432-9 and Deckel Maho 432-9

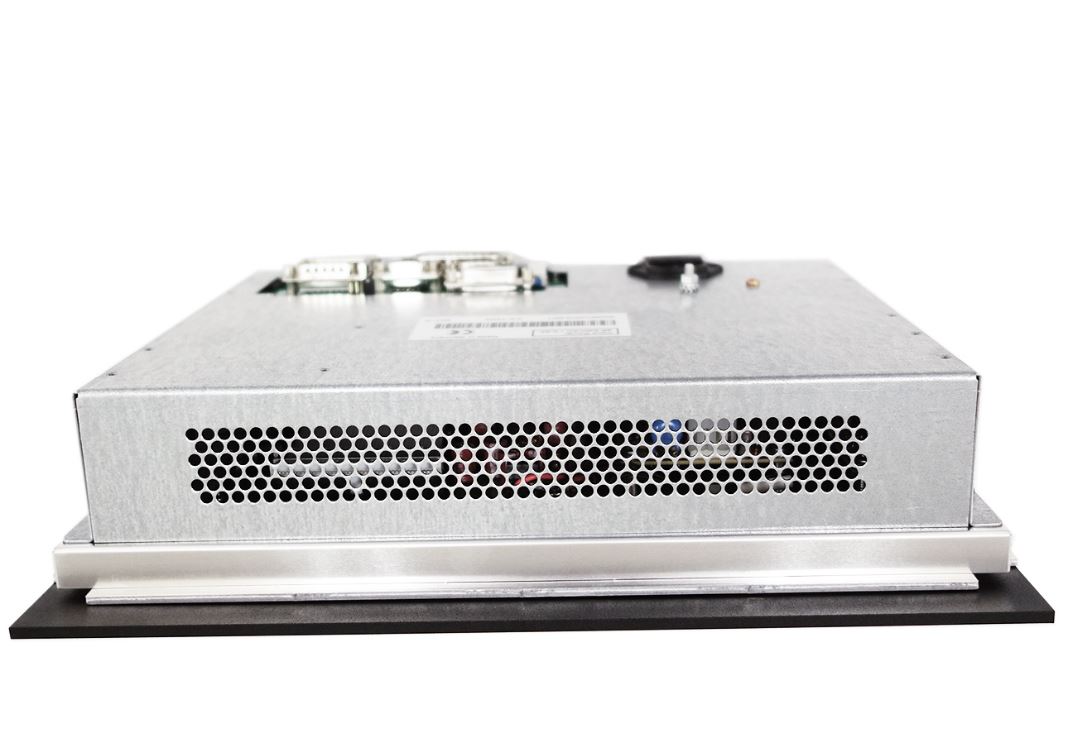

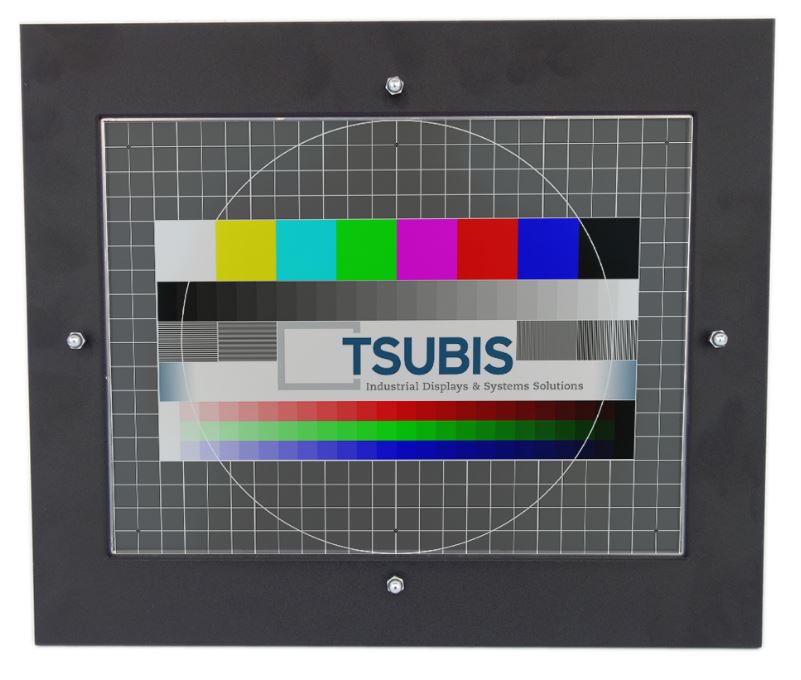

Our LCD12-0071 is a modern, energy efficient, 12.1″ LCD industrial monitor that has been specifically designed to replace the original 14″ monochrome CRT monitor used by the Philips 432-9, CNC 3360, CNC 3460, Deckel Maho 432/9 controls. Note that a 12.1″ flat screen LCD gives the same effective viewing area as a 14″ CRT.
The monitor is supplied with a customised front plate for easy mounting, and is mechanically and electrically compatible with the original Philips monitors to ensure easy installation in a few simple steps.
- Original Manufacturer: Deckel Maho Philips
- Control Model: Philips 432-9, CNC 3000, CNC 3360, CNC 3460, CNC 3480, Maho Philips 432
- Heidenhain Monitor Part Number: 320 066 01 ( MM 12100-390 ); 320 067 01 ( MM 12100-390 )); 367 957 01
- Mounting Method: Front plate

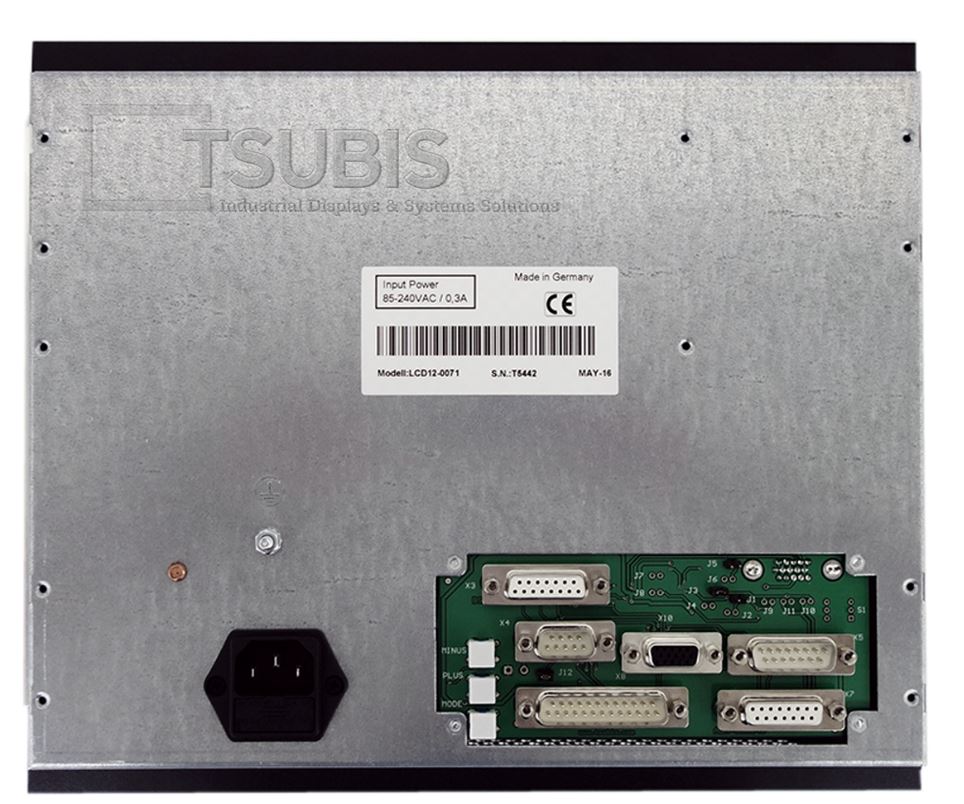

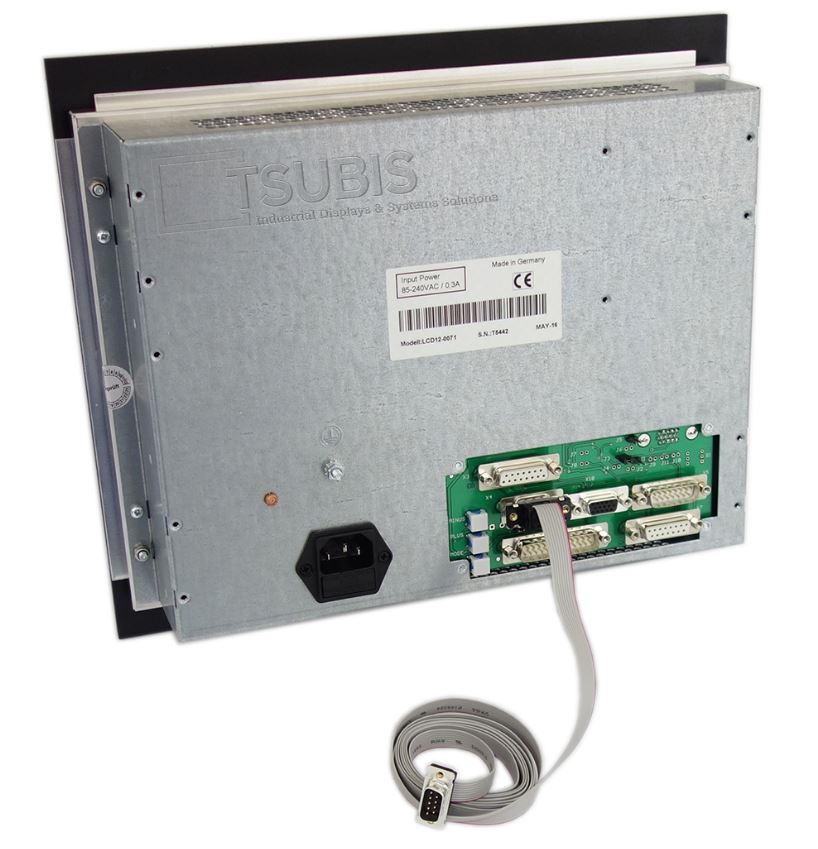

- Video connector: Connections for 15 pin (2 row) and 9 pin D-sub connectors
- Operating Voltage: 85-240 volts AC
- CE marked
- 1 Year Warranty
- Our Part Number: LCD12-0071
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen or Inverter
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
