Mori Seiki MSG-501

This a replacement display kit for the Mori Seiki MSG-501, Mori Seiki MSG-502 and Mori Seiki MAPPS MSG-805 CNC Controllers. The kit consists of a 10.4″ TFT display, backlight inverter, mounting bracket, a connecting cable and an adapter bracket.

This display kit replaces the NEC displays used in the original Mori Seiki monitor IDs E77190C01 and E77190A02.

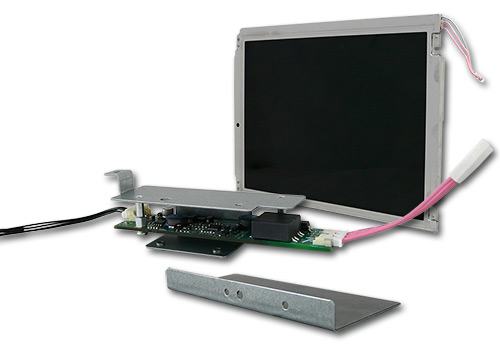

Replacement Display Kit

Original Hitachi Backlight Inverter Board

These kit parts can also be purchased separately.

Specifications:

• Replacement Display Kit for NEC displays fitted to Mori Seiki MSG-501, Mori Seiki MAPPS MSG-502 and MAPPS MSG-805 CNC controllers (in combination with Fanuc / Mitsubishi)
• Compatible with monitor IDs E77190C01 and E77190A02
• Compatible with Hitachi backlight inverter PA46010-1502 INVC 511
• Display kit consists of::
  • NEC 10.4″ TFT display
  • Backlight inverter including mounting bracket and cable
  • Metal plate adapter
• Display resolution: 640 x 480 pixel
• Brightness: 250 cd/m²
• Contrast ratio: 300:1
• Operating conditions: 0°C ~ 50°C operating temperature
• Designed for 24/7 continous operation
• Long term availability
• Our Part Number: LCD10-0165 (complete display kit)
• Our Part Number: 8540900 (only inverter, angles, cable and metal sheet – without TFT display)

Availability

Please contact our sales team by phone or email for delivery options

How To Order Your Replacement Screen

Call us on  +44 (0) 1438 362897 or Email.

We accept BACS payments and Credit/Debit cards
