Description

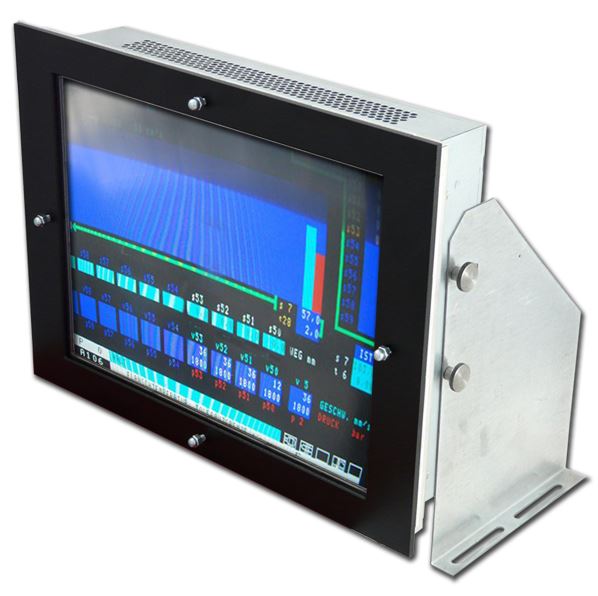

This 12.1″ TFT LCD monitor is a new, modern replacement for the original Krauss Maffei TFT300 LCD monitor that is fitted to the Krauss Maffei MC2 and MC3 controls.
It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit our new LCD monitor. The video connection is made via the supplied 20 pin to 20 pin adaptor cable, which replaces your existing 20 pin to 9 pin D-Sub cable. The monitor operates from a 85-240 VAC supply using a standard IEC (kettle) connector. A re-wireable IEC connector is provided.
The new LCD monitor can either be mounted in a fixed position using the supplied front mounting plate, or by using the side-rear mounting brackets, which are also supplied in the kit, that allow the monitor to be tilted, just like the original.
As with all our new LCD replacement monitors, we provide a full 1 Year Warranty.
Alternatively, we also provide a repair service for the original Krauss Maffei TFT300 monitor. Send your faulty LCD monitor direct to our workshop. We will quickly assess the problem and provide a quotation for the repair, before commencing any work.
Specifications of our replacement Krauss Maffei TFT300 monitor
Original Monitor: 12.1″ Krauss Maffei TFT 300 LCD (Mat Nr: 5080532)
New Display: 12.1″ TFT colour, 800 x 600
Compatible with: Krauss Maffei MC2 and MC3
Connector: 20 pin to 20 pin (2 rows) cable provided. Replaces the 9 pin D-sub connector.
Housing: fully compatible using a front mounting plate and side adjustable mounting brackets
Settings: via OSD (On Screen Display)
Power Supply: Operates from 85 – 240 VAC
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD12-0041
| Request for LCD12-0041 |
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen or Inverter
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
