Description
8.4″ industrial TFT LCD display that replaces the old 9″ CRTs fitted in the Hurco Ultimax SSM. It mounts on the chassis where the old CRT fits, and has a front rubber seal to match the curved profile of the old CRT to ensure a great fit.

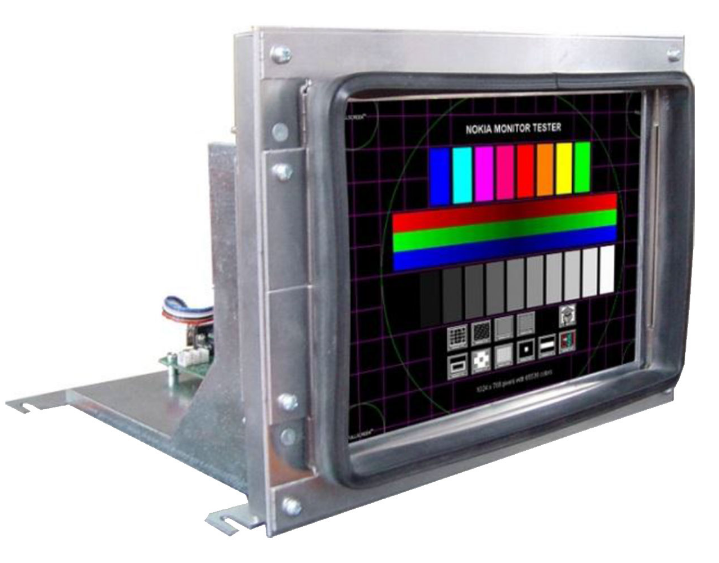

LCD84-0136 replacement LCD monitor for Ultimax SSM
For greater reliability, the LCD monitor operates from a 85-240 VAC supply, which takes the stress off the 12 Volt DC supply that powers the machine control boards and the old CRT.
The monitor is fitted with a 15 pin HD D-sub connector to match the existing video cable in your machine.
Specification:
- 8.4″ TFT LCD monitor replacing the 9″ CRT monitor in the Hurco Ultimax SSM controller.
- Mechanical design: Chassis mounted with front rubber seal
- Monitor Video Connection: 15 pin HD D-Sub
- Power supply: 85 – 240V AC
- Display resolution: 800 x 600 pixels
- Designed for 24/7 continuous operation
- 1 Year Warranty
- Our part number LCD84-0136
| Contact us about LCD84-0136 |
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen or Inverter
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
