Description

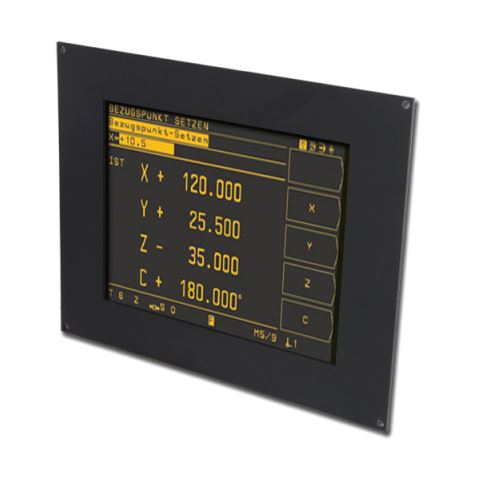

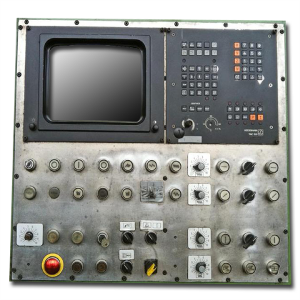

This Heidenhain BE211, BE211B, BE211F monitor is a modern 12.1″ colour TFT LCD replacement display for the original 12″ monochrome CRT monitor that was fitted to the Heidenhain TNC135, TNC150B, TNC151Q controllers.
Original monitor: be211, be211b, be211f, 12″ mono CRT
Replacement monitor: 12.1″ colour TFT LCD
Controller: Heidenhain TNC135, TNC150B, TNC151, TNC151B, TNC151Q
About Our Heidenhain BE211 Monitor
Our replacement heidenhain be211 monitor is designed and built by Tsubis in Germany. It has been specially developed to give the same operation as the original Heidenhain BE211 CRT monitor, but with higher performance and greater reliability. The display is crisper and brighter, making it much easier to read, and the fully integrated power supply uses modern technology that lowers your running costs. It is mechanically and electrically compatible with the original Heidenhain BE211 CRT, and is supplied with all the relevant cables and connectors to ensure a fast, plug and play installation.
Includes:

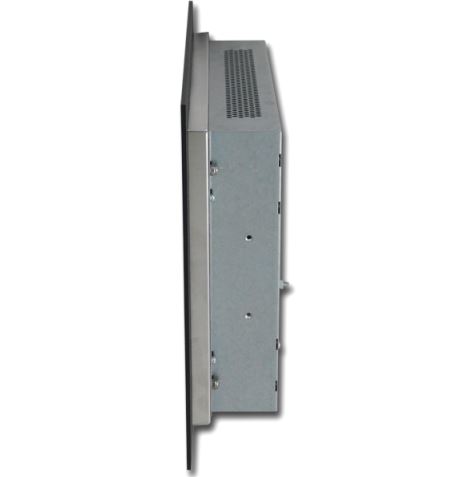

- 12.1″ TFT LCD panel and enclosure, mounted on a new front panel
- Video/Power connector: 24 pin Centronics to 15 pin D-Type adaptor cable
- Power: 12 VDC (via the video cable)
- Installation guide (English)
- 1 Year Warranty
- Available for shipment
Warranty and Support
Due to the use of top quality components and solid design, the Tsubis range of replacement CNC monitors have a 1 year manufacturers warranty. This is backed by our UK based after sales service to give you complete peace of mind on your purchase.
Availability
Please contact our sales team by phone or email for delivery options
