Description
This 12.1″ colour TFT LCD industrial monitor replaces the colour 14″ colour CRT displays that are fitted to Ferromatik FX40, Ferromatik FM175, Ferromatik FX, and Ferromatik IQT6 controllers. Note: a 12.1″ LCD provides the same viewing area as a 14″ CRT.
It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications.

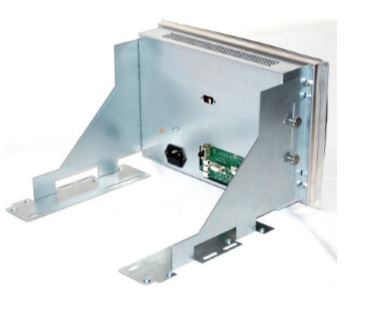

This model is supplied with adjustable side mounting brackets. Video connections are available for 9 pin D-sub female, and 15 pin HD-sub connectors. The unit is powered by 85-240V AC using a standard IEC (kettle type) connector. A re-wirable IEC power connector is supplied with the monitor.
Technical details of our Ferromatik FX40 replacement monitor:
- 12.1″ TFT LCD display
Replaces: TX-1440AE 14″ CRT monitor - electronically and mechanically compatible to Ferromatik FX40, FM175, FX, and IQT6 controllers
- Mechanics: fully compatible using side mounting brackets (supplied)
- Operating Voltage: 85-240V AC power supply
- Input signal: VGA
- Connection: 9 or 15 pin SUB-D
- Designed for 24/7 continuous operation
- 1 Year Warranty
- Our part number: LCD12-0093
| Request for LCD12-0093 |
Availability of Ferromatik FX40
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
