Description
This 6.4″ TFT LCD monitor is a replacement for the original 9″ monochrome CRT monitor that is fitted to the Delem DA42, DA23, and Delem EMA42 controllers.

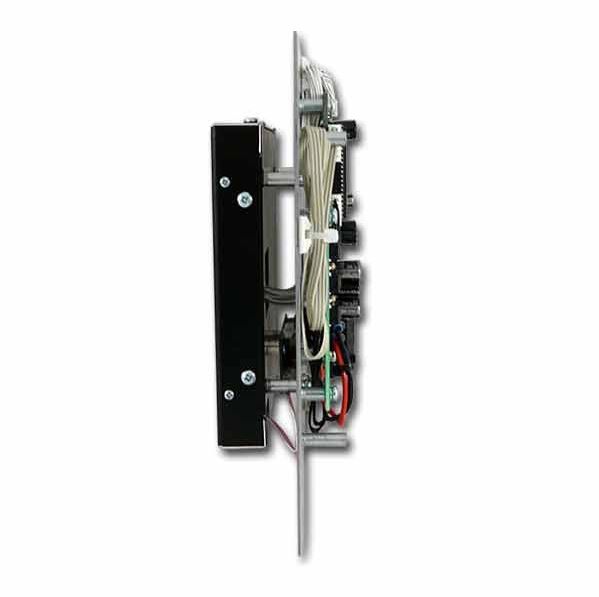

It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via a 10 pin ADA-CRT edge connector (see photo above). The monitor operates from a 12 VDC supply.
Technical details of our replacement Delem EMA42 monitor
New Display: 6.4″ TFT LCD colour, 800 x 600
Compatible with: Delem DA23, Delem DA42, Delem EMA42 (Philips M24-306 CRT)
Connector: 10 pin ADA-CRT edge connector
Housing: fully compatible using the supplied mounting plate
Settings: via OSD (On Screen Display)
Operating Voltage: 12 VDC via VGA port
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD64-0022
| Request for LCD64-0022 |
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Monitor
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
