Description

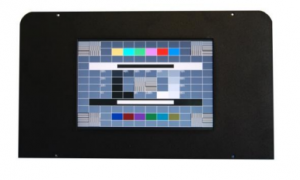

This 12.1″ TFT LCD monitor is a replacement for the original 14″ colour CRT the is fitted to the Deckel Dialog 11. Please note that a 12.1″ TFT LCD gives the same viewing area as a 14″ CRT.
It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old CRT and fit the new LCD monitor with its new front panel. There is no need for modifications. The video connection is made via a 25 pin (2 row) D-sub male connector, and is power from a 85-240 VAC supply.
Specifications of our replacement Deckel Dialog 11 monitor
Display: 12.1″ TFT colour, 1024 x 768 full colour
Active Area: 249 x 188 mm (w x h)
Connector: 25 pin (2 row) D-sub male )
Housing: fully compatible
Settings: via OSD (On Screen Display)
Power Supply: Operates from 85 – 240 VAC
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD12-0072
| Request for LCD12-0072 |
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Monitor
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
