Description
This Cybelec CNC 3200 monitor is a modern 8.4″ monochrome (green) TFT LCD replacement display for the original 9″ monochrome CRT monitor that was fitted to the Cybelec CNC 3200 controllers.
It is pre-programmed with the special Cybelec timing so that it automatically detects and syncs the video on power up.

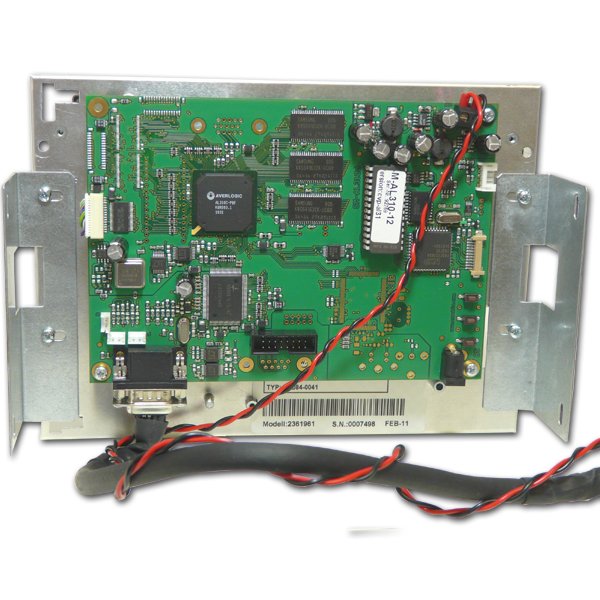

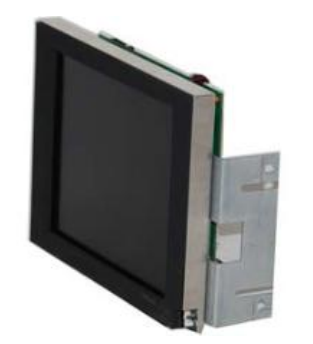

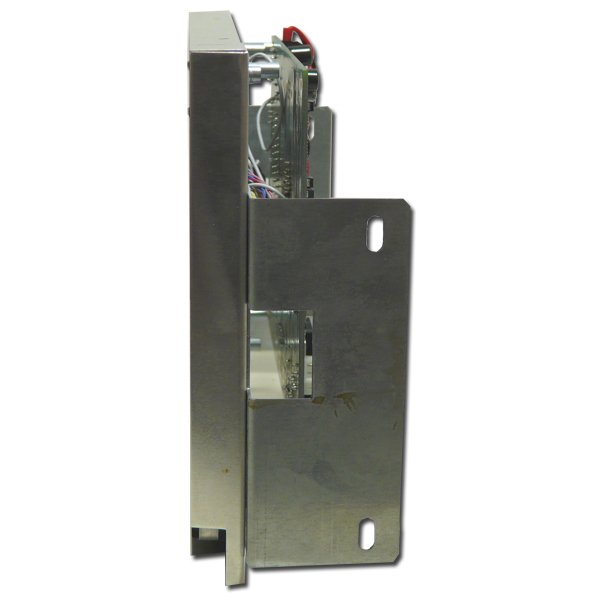

As seen in the images, it mounts directly into the Cybelec chassis without the need for modifications.
Connection to the monitor is via the 10 pin monitor connector “ADA-CRT10”, which supplies the video signal and the 12V DC power to the monitor.
Original monitor: Cybelec CNC 3300 9″monochrome CRT
Replacement monitor: Tsubis LCD84-0041, 8.4″ monochrome (green) TFT LCD
Controller: Cybelec CNC 3300
About Our Cybelec CNC 3300 Monitor
Our Cybelec replacement monitor is designed and built by Tsubis in Germany. The level of engineering and attention to detail in this German made product is second to none. It has been specially developed to give the same operation as the original Cybelec CNC 3300 CRT monitor. The display is crisp and bright, making it much easier to read, and the fully integrated power supply uses modern technology that lowers your running costs. It is mechanically and electrically compatible with the original Cybelec monitor, and is supplied with all the relevant cables and connectors to ensure a fast, plug and play installation.
Specification:
- 8,4″ TFT LED industrial monitor as a replacement to 9″ tube monitors at Cybelec CNC 3200 control units
- Mechanics: Chassis
- Connection: 10 pin adapter cable ADA CRT10
- Voltage: 12V DC via adapter cable
- Display resolution: 800 x 600 pixel
- Brightness: 250 cd/m2
- Contrast ratio: 600:1
- Backlight: approx. 20.000 operating hours
- designed for 24/7 continuous operation
- 1 Year Warranty
- Our part number LCD84-0041
Datasheet Enquire about LCD84-0041
Warranty and Support
Due to the use of top quality components and solid design, the Tsubis range of replacement CNC monitors have a 1 year manufacturers warranty. This is backed by our UK based after sales service to give you complete peace of mind on your purchase.
Availability of Cybelec CNC 3300 Monitor
Please contact our sales team by phone or email for delivery options
