Description

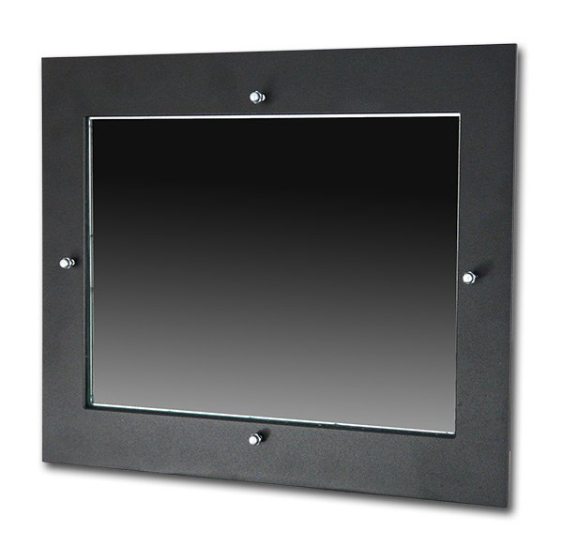

This Boehringer Philips B2T monitor is a modern 12.1″ monochrome TFT LCD replacement display for the original 14″ monochrome CRT monitor that was fitted to the Boehringer B2T with Philips CNC 3000/3360/3460 Philips 432 DEKCEL MACHO, Philips 43/9 controllers.

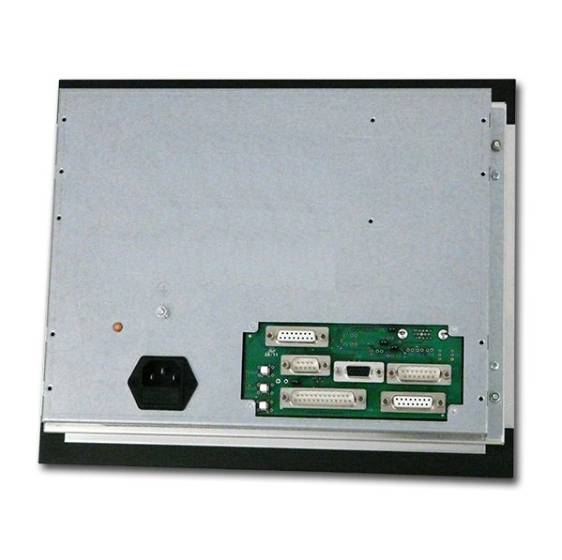

Boehringer B2T Monitor – rear

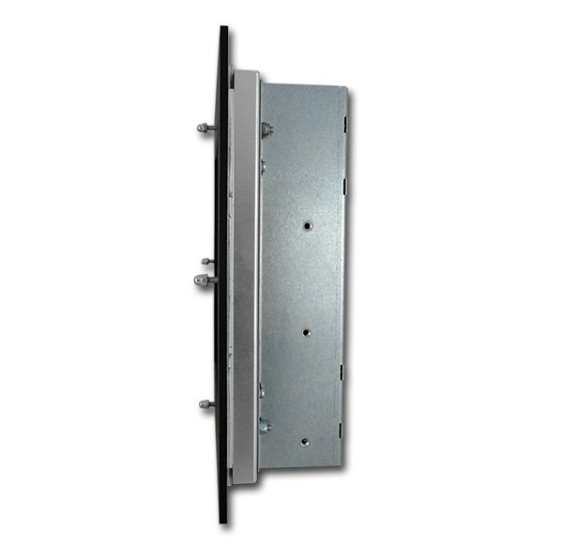

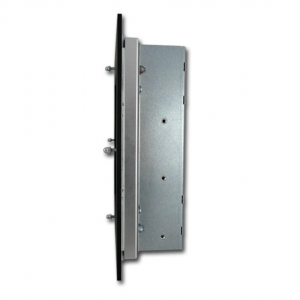

Boehringer B2T Monitor – side
Original monitor: Boehringer B2T, 14″ CRT
Replacement monitor: Tsubis LCD12-0026, 12.1″ monochrome TFT LCD
Controller: Boehringer Philips B2T, CNC 3000/3360/3460 Philips 432 DEKCEL MACHO, Philips 43/9
About Our Boehringer Philips B2T
The TFT monitor is supplied with a front panel and a 9 pin SUB-D connector.
Specifications:
- 12.1″ replacement LCD monitor for tube monitor B2T in Boehringer machines (Philips CNC 3000 control)
- Mechanical version: incl. front panel
- non-reflecting glass

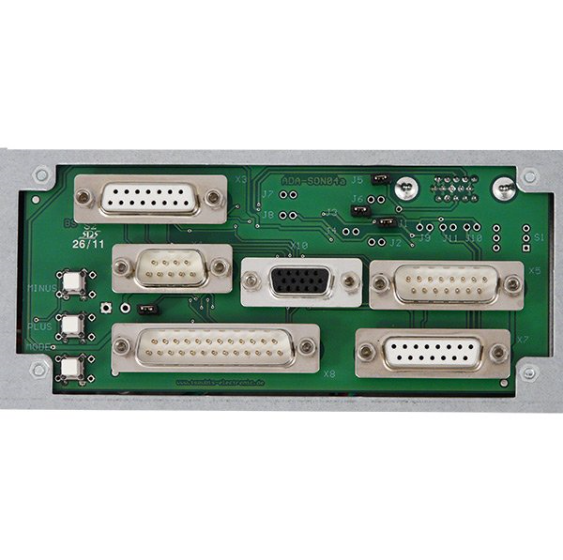

- Connection monitor: 9 pin SUB-D
- Operating voltage: 110-230V AC
- Brightness: 300cd/m2
- Contrast ratio: 300:1
- Backlight: approx. 40,000 operating hours
- Operating condistions: 0°C ~ 50°C operating temperature

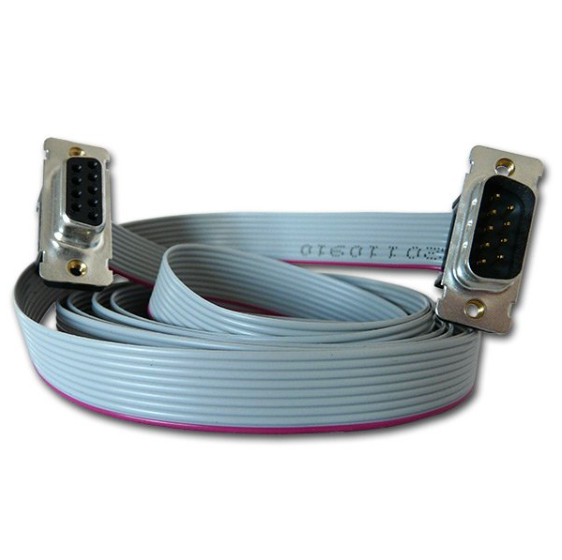

- Delivery incl. adapter cable 9 pin SUB-D pin to 9 pin SUB-D female connector
- designed for 24/7 continuous operation
- Long-term-availability
- Our Part Number: LCD12-0026
Datasheet Enquire about LCD12-0026
Availability
Please contact our sales team by phone or email for delivery options
