Description
This 12.1″ industial monitor replaces colour 14″ CRT monitors fitted to the AGIECUT 100D 300D wire eroding EDM machines. Used with the AGIEMATIC CD controller.
The replacement monitor was specially developed to be electronically and mechanically compatible to the original AGIEMATIC CD controller and can therefore be swapped out easily with a view “Plug & Play” steps.

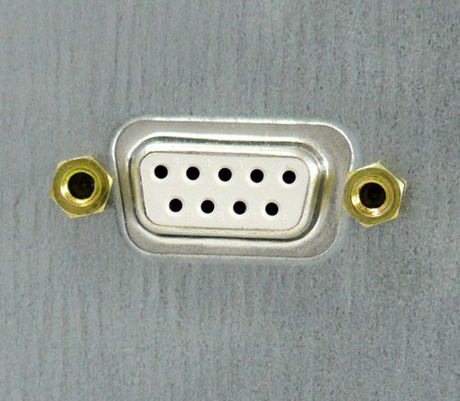

The TFT monitor is connected via a 9 pin D-Sub monitor connector. A matching connection cable is supplied with the monitor.
Specifications:
- 12.1″ industrial monitor as a replacement for the 14″ tube monitors on AGIEMATIC CD control
- Compatible with AGIE CNC machines AGIECUT 100D and AGIECUT 300D

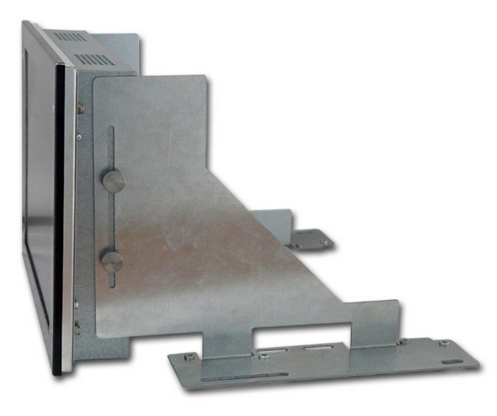

- Mechanical mounting: Chassis with front panel and adjustable side-mounting brackets

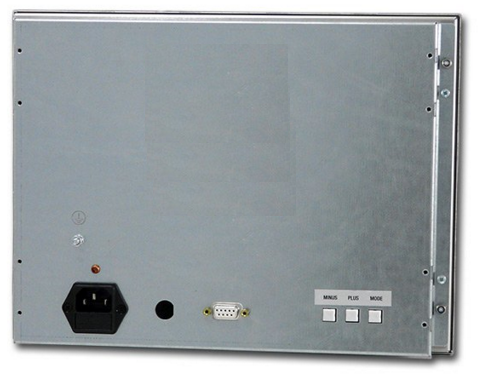

- Connection monitor: 9 pin D-SUB

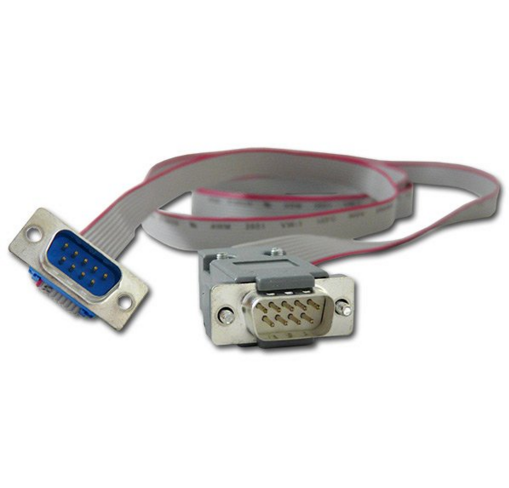

- Includes a video adapter cable
- Operating voltage: 85-230 VAC
- Display resolution: 800 x 600 Pixel
- Brightness: 400 cd/m2
- Contrast ratio: 500:1
- Backlight: approx. 50.000 operating hours
- Operating condistions: 0°C ~ 50°C operating temperature
- Designed for 24/7 continuous operation
- Long-term-availability
- 1 Year Warranty
- Our part number LCD12-0031

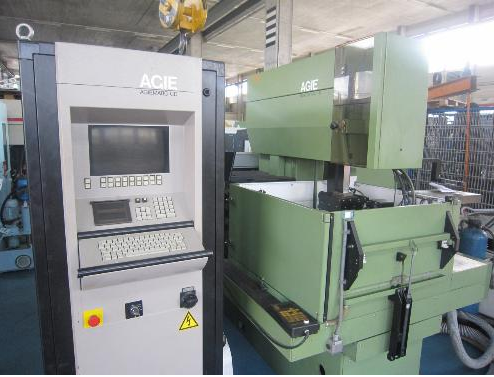

Original monitor: Agiecut 100D and 300D 14″ colour CRT
Replacement monitor: Tsubis LCD12-0031 12.1″ colour TFT LCD

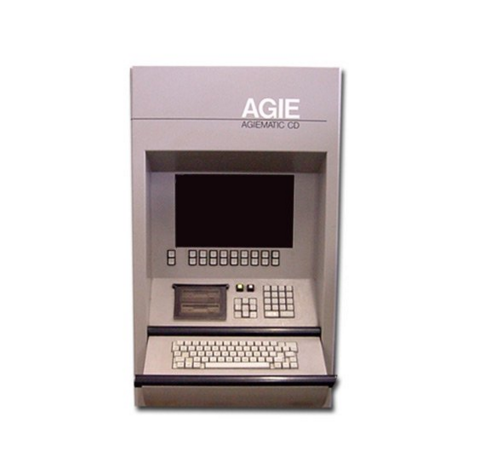

Controller: AGIE AGIEMATIC CD
| Email us about LCD12-0031 |
AgieCut 100D Video
How To Install Our Replacement AGIE Monitors
Warranty and Support
Due to the use of top quality components and solid design, the Tsubis range of replacement CNC monitors have a 1 year manufacturers warranty. This is backed by our UK based after sales service to give you complete peace of mind on your purchase.
Availability of AGIECUT 100D 300D
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Monitor
call us on 44 (0) 1438-362897 or email us at sales@svsrepairs.co.uk
We accept BACS payments and Credit/Debit cards.
