Installing our LCD12-0002 LCD monitor in a Mori Seiki SL-35 with Fanuc 15T control

1. Power down the machine.
2. Loosen the three thumb screws holding the front door of the console, then open to reveal the back of the monitor. The CRT monitor is typically a Fanuc A02B-0094-C043.
3. On the back of the CRT monitor, find the video connector CN1. Loosen the two small screws on the front of the connector and disconnect the video cable – this will be reused

4. On the back of the CRT monitor, find the power connector CN2. Disconnect the three power wires on CN2. Red is LIVE, WHITE is NEUTRAL, GREEN is EARTH.

5. Underneath the CRT monitor, unscrew the two screws holding the CRT to the metal chassis.

6. The CRT monitor can now be lifted up at the rear and slid backwards to remove it from the metal mounting frame.
7. Remove the foam surrounding the front glass.
8. Remove the top six nuts that hold the metal mounting frame to the front door.

9. Attach the new LCD monitor to the six bolts (from step 8) and reattached the 6 nuts to hold the LCD monitor in place.
10. Connect the video adapter cable (with blue Honda connector) supplied in the LCD kit to the video connector on the back of the LCD monitor.
11. Connect the other end of the video adapter cable to the video cable removed in step 3.
12. Using the supplied, rewireable, IEC power connector (kettle connector) attach the three power wires removed in step 4 to the terminals inside the rewireable IEC power connector. Earth must be connected to the centre pin. It does not matter which of the outer pins the other two wires go to (this is 85-240V AC)

13. Connect an earth wire from the earth stud on the rear of the LCD monitor to any screw on the metal mounting frame.

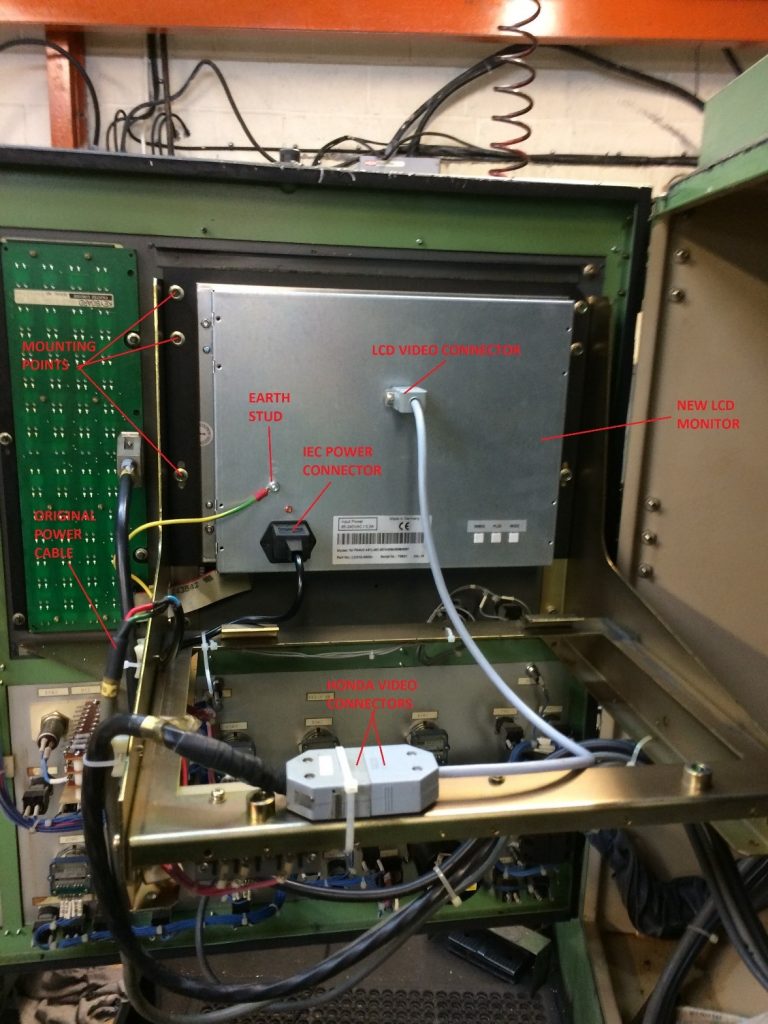

14. Power up the machine as normal. The LCD monitor should automatically detect the video signal and display video on the screen.
15. If the screen does not line up correctly, try selecting MODE 2 or MODE 3 by cycling through the MODE switch on the rear of the monitor until MODE 2 or Mode 3 appears, and then press either PLUS or MINUS to select the mode. The new mode will display after a few seconds. Select the mode which best fits the display, then use HORIZONTAL POSITION, HORZONTAL SIZE, VERTICAL POSITION, VERTICAL SIZE to correctly align the display.

Stour Valley Systems (SVS) are the UK agent for Tsubis GmbH – manufacturers of Europe’s widest range of replacement LCD monitors for CNC and Injection Moulding machines.

We supply and repair LCD monitors for all major brands, and have access to an extensive stock of spare parts, including rare or obsolete LCD panels, EL displays, touch screens, backlight inverters, and backlight bulbs.

Replace your old CRT screen with our modern, energy efficient, drop-in replacement, LCD monitors with LED technology.

• Huge savings compared to OEM prices
• FREE DELIVERY (with your first order)
• 1 Year Warranty
• UK supplier
• Made in Germany
• CE certified

Stay subscribed to get our latest special offers, information on new product releases, product videos, advice on the benefits of upgrading to LCD, and much more…

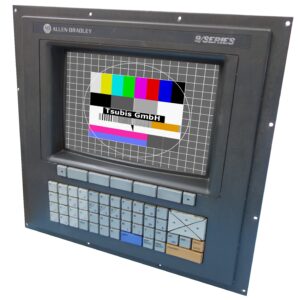

This 10.4″ colour LCD monitor replaces the original 12″ colour CRT monitor that was fitted to the Allen Bradley Series 9 controllers, specifically the Allen Bradley 9/230 monitor and the Allen Bradley 9/240 monitor.

Read more here

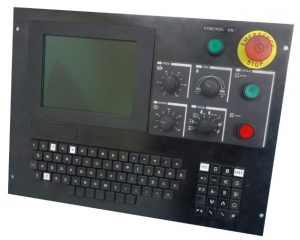

This 8.4″ TFT LCD monitor is a modern, flat screen replacement for the Osai 8600 9″ CRT used the Osai/Allen-Bradley 8600 controller.

Read more here

Tsubis GmbH have developed a new touch screen kit to replace the original Amada HFP touch screen parts.

It consists of a 15” TFT display with a Tsubis designed video card containing both DVI-D and VGA connectors; a touch screen panel; and a touch screen controller board. The kit also includes a 5 metre VGA cable and power cable (12 VDC).

• Amada Touch Screen Kit Features
• Connection: HD D-Sub 15 pin / 3 rows
• Operating Voltage: 12 VDC
• Display Resolution: 1024 x 768 pixels
• Brightness: 250 cd/m2
• Contrast: 800:1
• Backlight: approx. 40,000 operating hours

The kit is competitively priced at £760 + VAT, and individual items can also be ordered separately.

For more information or to order on-line, visit our Amada page here.

Or call us now on +44 (0) 1438 362897 or email us at sales@svsrepairs.co.uk

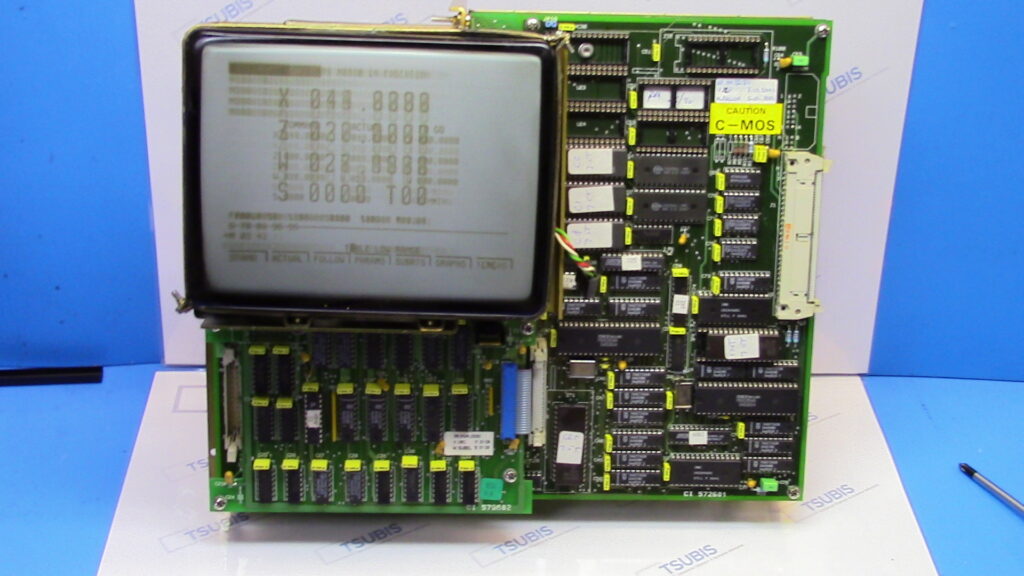

Stour Valley Systems and Tsubis GmbH are pleased to announce the launch of a new product to replace the old CRT monochrome monitor that is fitted to the Fagor 8025 CNC machines.
