Description

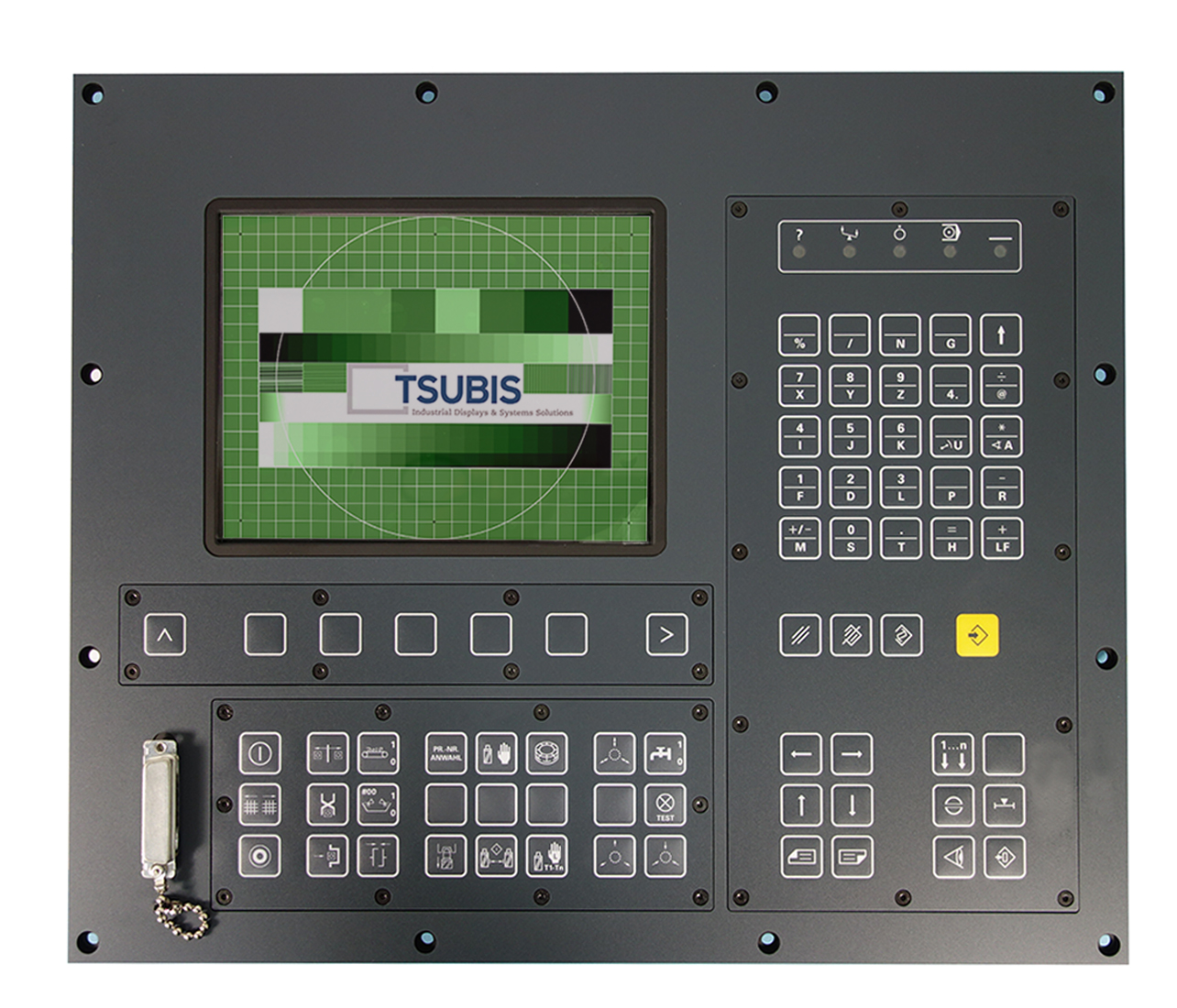

Replacement LCD monitor for Siemens Sinumerik 810 with operator panel
Our LCD84-0051 is a modern 8.4″ TFT LCD monitor with a new operator panel that replaces the original 9″ CRT monitor and operator panel fitted to the following Siemens controls:
- Siemens Sinumerik 810 GA.2
- Siemens Sinumerik 810 M
- Siemens Sinumerik 810 T
- Siemens Sinumerik 810 T GA.3

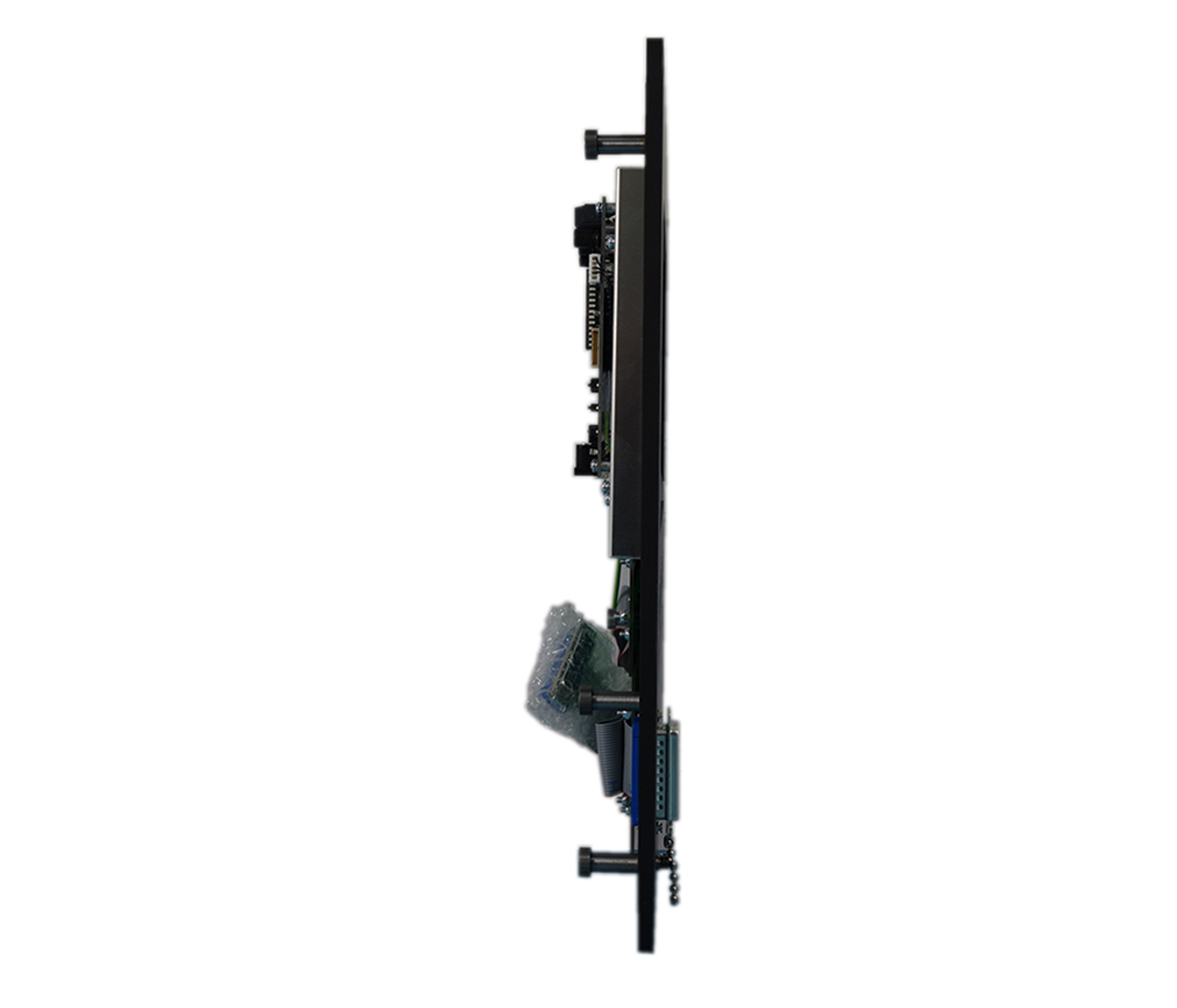

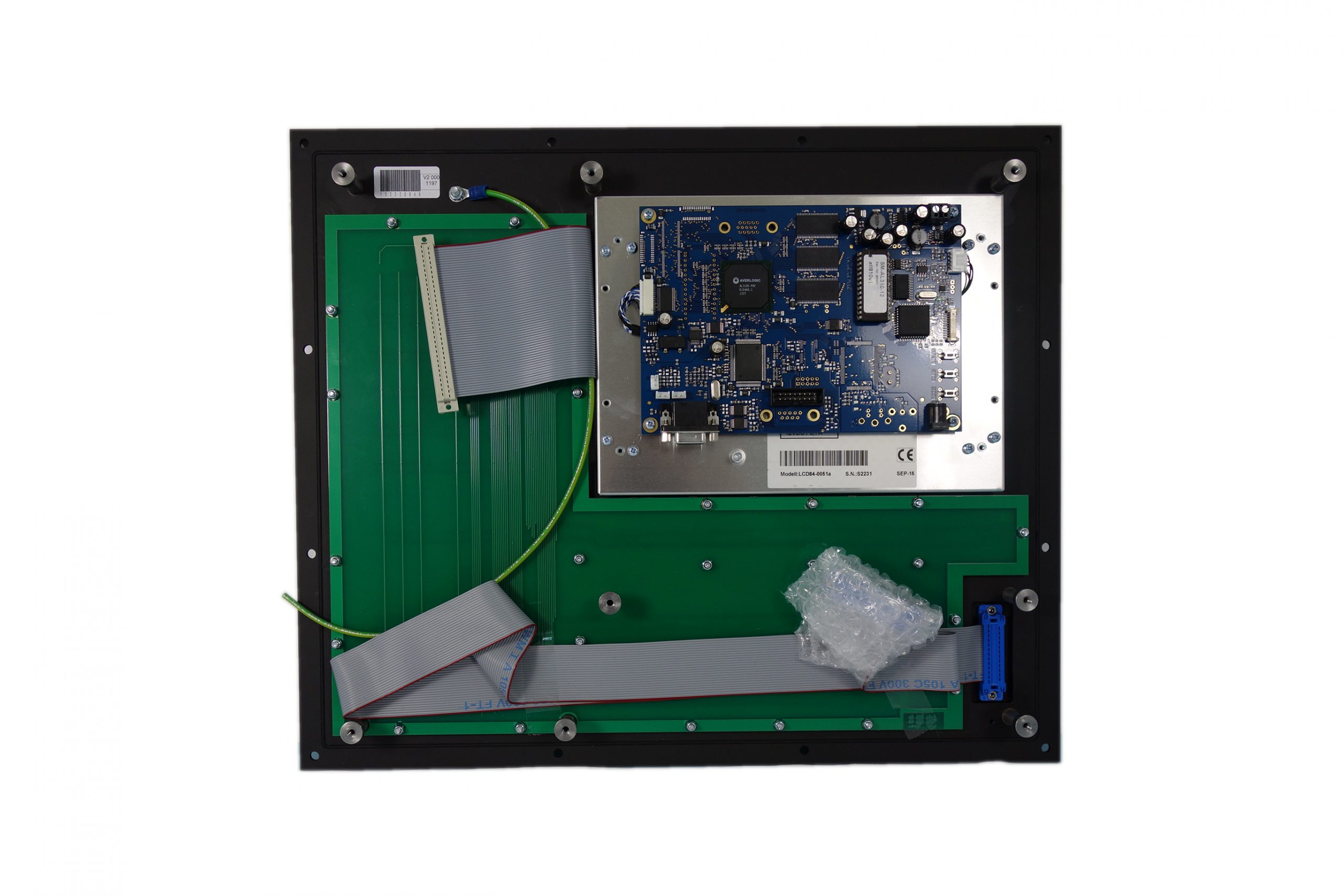

Our replacement LCD monitor is electrically and mechanically compatible with the original CRT monitor, and is easily swapped in a few simple steps. It is supplied pre-fitted to a new Siemens 6FX1130-0BB01 operator panel.
All of our LCD monitors come with a full 1 Year Warranty, supported by us in the UK.
About our replacement Siemens Sinumerik 810 monitor with new operator panel monitor
10.4″ TFT LCD replacement monitor and operator panel.
Control Manufacturer: SIEMENS SINUMERIK
Control: 810 GA.2, 810 M, 810 T, 810 T GA.3
Mechanical fitting: monitor is supplied fitted to a new keyboard operator panel (original Siemens codes 6FX1130-0BB01, 6FC3984-7CD01)
Video Connection: 16 pin ribbon cable
Operating Voltage: 12-15V DC via video connector
Siemens Monitor codes:
- 6FC3251-1AC-Z
- 6FC3541-0AA-Z
- 6FC3541-0AC-Z
- 6FC3551-1AC-Z
- 6FC3821-2AC-Z
- 6FC3984-7CD
- 6FC3984-7CD01
- 6FC3984-7CD81
- 6FC3984-7CD82
- 6FC3984-7CE01
- 6FC3984-7CE81
- 6FC3984-7CE82
- 6FC3984-7CE-Z
- 6FC3988-7AF01
- 6FM1510-1AA-Z
- 6FX1130-0BB01
Our part number: LCD84-0051
Availability
Please contact our sales team by phone or email for delivery options
How To Order Your Replacement Screen or Inverter
Call us on +44 (0) 1438 362897 or Email.
We accept BACS payments and Credit/Debit cards
