Description
Welcome to the quick lookup page for our replacement Heidenhain monitors
- Replacement LCD displays for Heidenhain CRT monitors 9“, 12“, 14“, 15“ (colour and monochrome)
- BC110, BC120, BC125, BE110, BE111, BE132, BE135, BE211, BE212, BE311, BE411, BE412, BE511, BE512, BF110,BF120, BF150, BF155, BF2500, BFT121, BFT121G, BFT131, CNC Pilot Mill Plus, CNC Pilot 3190, Manuall Plus 620, 3110, 4110, Philips CNC 3000 and CNC 5000, Positip 850, 855, TNC123, 124, 2500, Heidenhain 4290
- Mechanically and electrically compatible
- 1 years warranty
Select your machine from the list below or call us on 01438-362897 or Email.
| Machine | Controller | Original Monitor | New Monitor | Our Part Number | Read More |

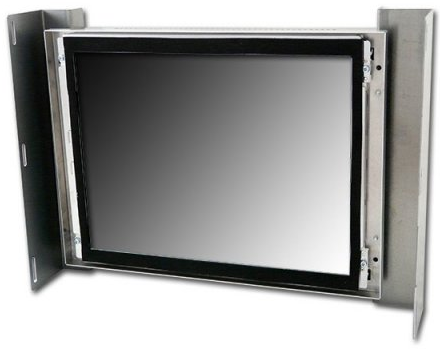

| BC110, BC110B, BC110BF |
TNC 406/407/415/425/426
Uses your existing front panel |
CRT 14″ Colour | LCD 12.1″ | LCD12-0038 |  |

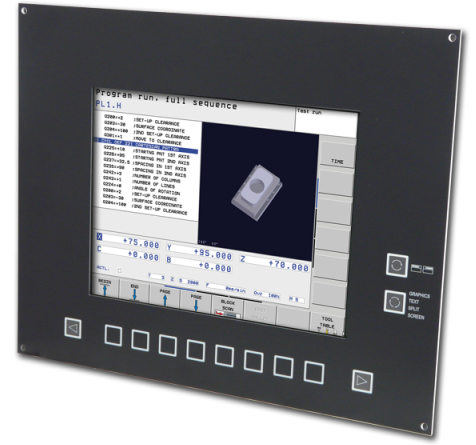

| BC110, BC110B, BC110BF |
TNC 406/407/415/425/426
Supplied with new front panel and keys |
CRT 14″ Colour | LCD 12.1″ | LCD12-0076 |  |

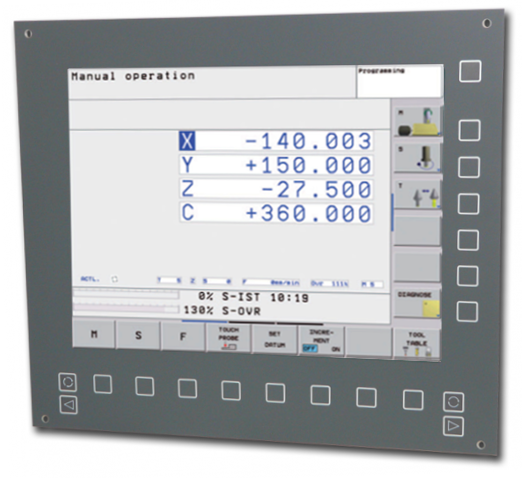

| BC120, BC120F, BC125 | TNC 407/ 410/ 416/ 426/ 426PB/ 430, Mill Plus
Supplied with new front panel and buttons. Version with buttons at the bottom and right-hand side of screen |
CRT 15″ Colour | LCD 15″” | LCD15-0004 |  |
| BE110, BE111
|
TNC 131, TNC 135, TNC 145C, TNC 150, TNC 151
Supplied without new front plate. |
CRT 9″ Monochrome | LCD 8.4″ | LCD84-0011 |  |
| BE132B
|
CNC132, CNC223/232, CNC322
Supplied without new front plate. |
CRT 12″ monochrome | LCD 12.1” | LCD12-0042 |  |
| BE132B | CNC132, CNC223/232, CNC322
Supplied with new front plate. |
CRT 12″ monochrome | LCD 12.1” | LCD12-0143 |  |
| BE135 | TNC 131, TNC 135, TNC 145C, TNC 150, TNC 151
Supplied with new front plate. |
CRT 9″ Monochrome | LCD 8.4″ | LCD84-0011 | |
| BE211, BE211B, BE211F |
TNC150, TNC151
Supplied with new front plate. |
CRT 12″ Monochrome | LCD 12.1″ | LCD12-0102 |  |

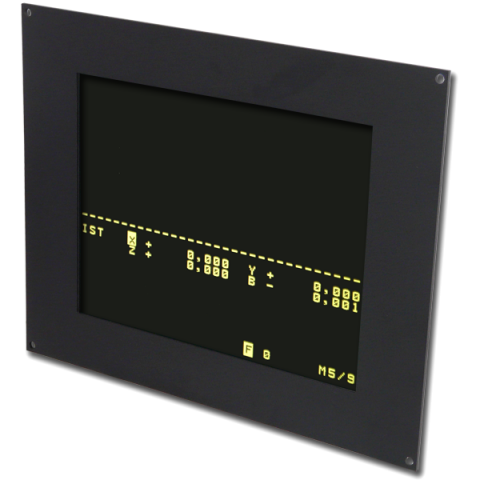

| BE212, BE212B, BE212F |
TNC246, TNC2500B, TNC306, TNC335, TNC351, TNC360, CNC223, CNC322
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0136 |  |
| BE311, BE311B, BE311F |
TNC 223
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0037 |  |
| BE411, BE411B BE411F |
TNC155
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0035 |  |
| BE412, BE412B, BE412F |
TNC355
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0036 |  |
| BE511 | TNC332, TNC335
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0043 |  |
| BE512 | CNC 234
Supplied with new front plate. |
CRT 14″ Monochrome | LCD 12.1″ | LCD12-0101 |  |
| BF110 | TNC123, 124, 310
ELD display only. |
ELD 9.1″ | ELD 9.1″ | LCD95-0015 |  |
| BF120 | TNC410M, TNC416, TNC426M, TNC430M
Monitor only version without front panel and buttons |
LCD 10.4″ Colour | LCD 10.4″ | LCD10-0106 |  |
| BF120 | TNC410M, TNC416, TNC426M, TNC430M
Supplied with new front panel and buttons |
LCD 10.4″ Colour | LCD 10.4″ | LCD12-0175 |  |
| BF150 | iTNC530, MillPlus
Supplied with new front panel and buttons |
LCD 15.1″ Colour | LCD 15.1″ | LCD15-0134 |  |

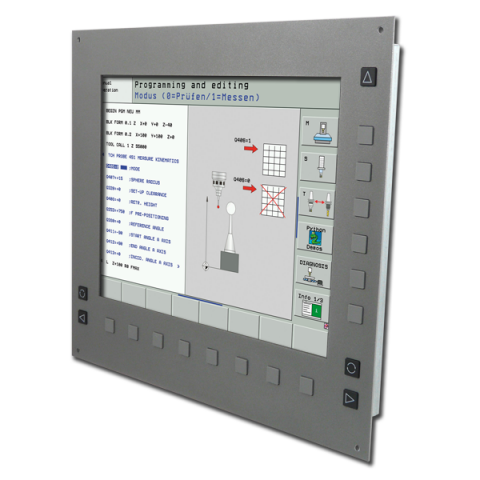

| BF155M | iTNC530, MillPlus
Supplied with new front panel and buttons |
LCD 15.1″ Colour | LCD 15.1″ | LCD15-0098 |  |
| CNC Pilot Mill Plus | CNC Pilot Mill Plus | CRT 14″ Colour | LCD 12.1″ | LCD12-0211 |  |

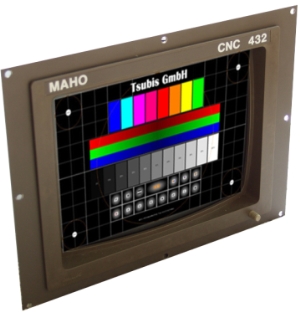

| Philips CNC 3000 | Philips CNC 3000 | 14″ CRT-colour monitor Video & Teletext Module | LCD 12.1″ | LCD12-0212 |  |
| Philips CNC 5000 | Philips CNC 5000 | 14″ CRT-colour monitor Series with GCB | LCD 12.1″ | LCD12-0213 |  |

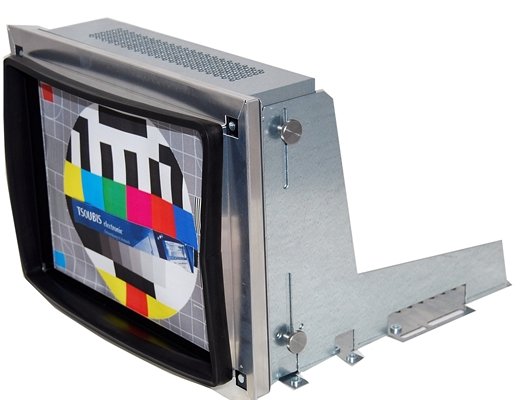

| Positip 850 | Positip 850 | CRT 12″ Monochrome | LCD 10.4″ | LCD10-0216 |  |
| Heidenhain monitor code |
Heidenhain monitor units | replacement monitor Data sheet |
|||
| 9,1″ Display | BF 110 (TNC 2500) | LCD95-0015 | Read more |
||
| 9,1″ Display | BF 2500 (TNC 2500) | LCD95-0016 | Read more |
||
| 12,1″ Display | BFT131 | LCD12-0310 | Read more |
||
| 10,4″ Display | CNC Pilot 3190 | LCD10-0092 | Read more |
||
| 10,4″ Display | Heidenhain 4290 | LCD10-0125 | Read more |
||
| 9″ Display | Heidenhain TNC123 | LCD95-0007 | Read more |
||
| 9,1″ Display | Heidenhain TNC124 | LCD95-0002 | Read more |
||
| 12,1″ Display | Heidenhain Manual Plus 620 | LCD12-0310 | Read more |
||
| 9,5″ Display | Heidenhain Manuell Plus 3110, 4110, BFT121 | LCD95-0005 | Read more |
||
| 10,4″ Display | Heidenhain Manuell Plus 3110, 4110, BFT121G | LCD10-0148 | Read more |
||
| 8,9″ Display | Positip 855 | LCD84-0126 | Read more |
||
